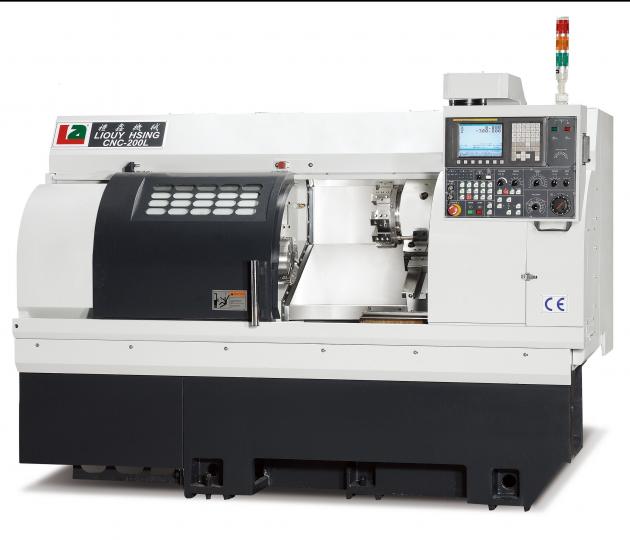

CNC-200L
Specifications
| Capacity | |
| Max. Swing diameter | 400mm |
| Max. turning diameter | 330mm |
| Max. turning length | 540mm |
| Distance between centers | 540mm |
| Travel | |
| X-axis | 165mm |
| Z-axis | 540mm |
| Spindle | |
| Max.Speed | 3500rpm |
| Spindle nose | A2-6,A2-8(Option) |
| Spindle bearing ID | 90/100/120 mm |
| Spindle bore | 52mm (Opt:75mm) |
| Bar Capacity | 42/52/65mm |
| Turret (Optional) | |
| Type | 8-station (Opt:12-station) |
| OD tool | 25mm |
| ID tool | Ø 32mm |
| Feed Rate | |
| X-axis | 20m/min |
| Z-axis | 24m/min |
| Hydraulic Tailstock (Optional) | |
| Quill diameter | 75mm |
| Quill taper | MT#4 |
| Travel | 540mm |
| Quill travel | 80mm |
| Motor | |
| Spindle motor | α22 P |
| Feed drive motor | α 8 (X-axis) α 8 (Z-axis) |
| Hydraulic motor | 2HP |
| Coolant pump motor | 1 HP |
| Machine Dimensions | |
| Machine weight | 3500kgs |
| L x W x H | 2350x1900 x1800 mm |
✳ The above specifications subject to change without prior notice.
