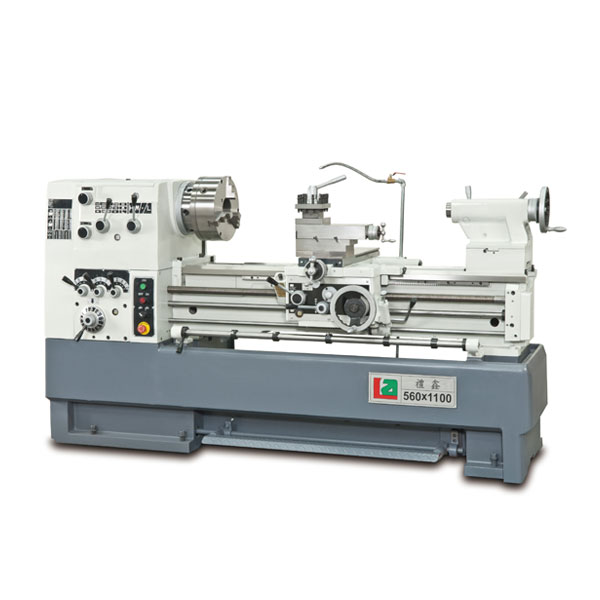

560 Series (1)




  • LA - 560 x 1100
  • LA - 560 x 1500
  • LA - 560 x 2000
Capacity
Width of bed 350 (13.77”) mm
Total travel of top slide 135 (5.9”) mm
Swing over bed Ø560 (32”) mm
Swing over cross slide Ø390 (15.35”)mm
Swing in gap Ø730 (28.74”) mm
Gap width in front of face plate 200 (7.87”) mm
Height of center from leg bottom 1125 (44”) mm
Distance between centers 1100 (44”) / 1500(59.05") / 2000(78.74")
Headstock
Number of spindle speeds 12 steps
Spindle bore Ø80 (3.15”) mm
Type of spindle nose A1-8 D1-8
Taper of spindle bore& center MT. NO. 7 x No. 5
Range of spindle speeds 25,35,60,80,115,165,240,350,500,730,1050,1540
Thread & Feed
Lead screw diameter and pitch 35(1 1/8”) 4TPI or pitch 6mm
Range of inch threads 2~72(44 changes)
Range of metric threads 6mm: 0.2~14 (39)changes
Number feeds 36 steps
Range of longitudinal feeds 0.03~0.85mm(0.0012”~0.034”)
Range of cross feeds 2/3 of longitudinal feeds
Tailstock
Tailstock quill diameter Ø70(2.76”)
Total travel of tailstock quill 175(7”)
Taper in tailstock quill M.T.No. 5
Motors
Spindle drive motor 5 HP/ 7.5HP(opt.)
Coolant pump motor 1/8
Machine Dimensions & Weight
Space Required ( L x W x H) 2500x1050x1450 3000x1050x1450 3500x1050x1450
Packing Dimensions ( L x W x H ) 2500x1100x1550 3000x1100x1550 3500x1100x1550
Net weight ( approximate ) 1800 2000 2200
Standard Accessories Optional Accessories
3-jaw chuck 10” Follow rest
Center sleeve M.T. No.7 x 5 Fact plate (350mm)
Dead center M.T. No.5 4-position micro carriage stop
Levelling screws Taper turning attachment
Service kits 4-jaw independent chuck
Main motor 5HP(4P) Work light
Steady rest Rear toolpost
Drive plate Splash guard
Complete coolant equipment
