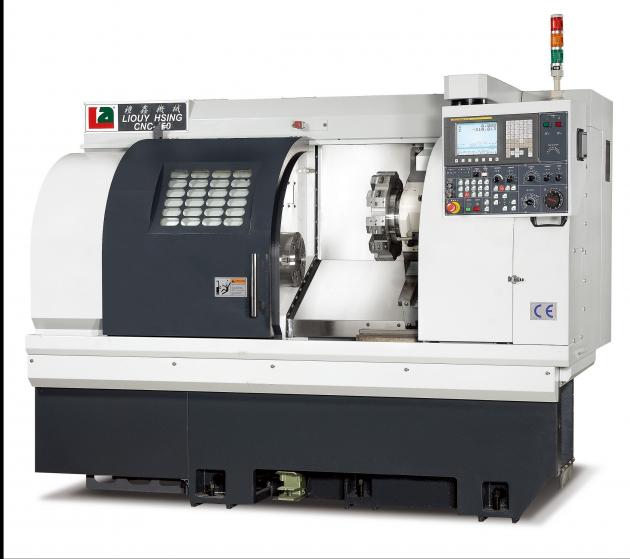

CNC-450
Specifications
| Capacity | |
| Max. Swing diameter | 580mm |
| Max. turning diameter | 8-station = 450mm 10-station = 410mm |
| Max. turning length | 540mm |
| Distance between centers | 540mm |
| Travel | |
| X-axis | 210mm |
| Z-axis | 540mm |
| Spindle | |
| Max.Speed | 3000rpm |
| Spindle nose | A2-8 |
| Spindle bearing ID | 120/130/140mm |
| Spindle bore | 75/86/90mm |
| Bar Capacity | 65/75/90mm |
| Turret (Optional) | |
| Type | 8/10/12 station |
| OD tool | 25mm |
| ID tool | Ø 32mm |
| Feed Rate | |
| X-axis | 15m/min (OPT: X=20m/min) |
| Z-axis | 15m/min (OPT: Z=24m/min) |
| Hydraulic Tailstock (Optional) | |
| Quill diameter | 75mm |
| Quill taper | MT#4 |
| Travel | 500mm |
| Quill travel | 80mm |
| Motor | |
| Spindle motor | α22 P |
| Feed drive motor | α 8 (X-axis,Z-axis) OPT: α12 (X-axis,Z-axis) |
| Hydraulic motor | 2HP |
| Coolant pump motor | 1 HP |
| Machine Dimensions | |
| Machine weight | 4500kg |
| L x W x H | 2900 x 2300 x 1900 mm |
✳ The above specifications subject to change without prior notice.
